A Guide to DPF Cleaning & Regeneration Cycles

Diesel Particulate Filters (DPFs) trap and eliminate soot and particulate matter from the exhaust stream. However, like any filter, DPFs require regular maintenance to function correctly. This guide outlines the intricacies of DPF cleaning and regeneration cycles, highlighting how they operate, when service is needed, and best practices for system performance.

Understanding the Diesel Particulate Filter

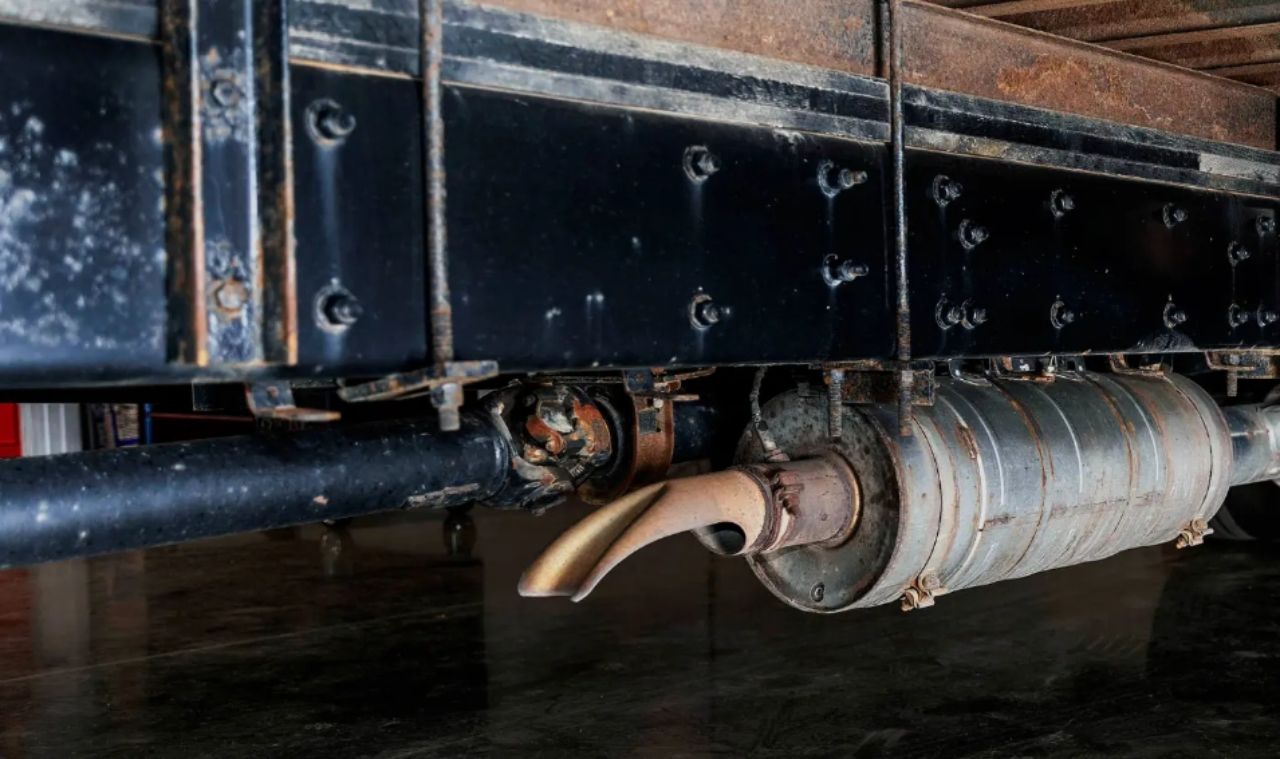

A Diesel Particulate Filter (DPF) is a ceramic-based filtration unit positioned in the exhaust system. It’s engineered to capture microscopic particles and soot, preventing them from being expelled into the atmosphere. These filters are highly effective but not self-sustaining; they must be regenerated regularly to burn off the accumulated carbon deposits.

Over time, without regeneration, the filter becomes restricted, which can cause:

• Increased exhaust backpressure
• Reduced fuel economy
• Engine derating or shutdown

The Regeneration Cycle Explained

Regeneration is the process of burning off the soot collected in the DPF. There are three types of regeneration cycles:

Passive Regeneration

Passive regeneration occurs naturally while the engine is in operation, typically on long hauls where exhaust temperatures are high enough (above 600°F) to oxidize the particulate matter. This process requires no intervention and is ideal, but not always sufficient.

Active Regeneration

When the engine control module (ECM) detects that soot levels have reached a critical point, it initiates active regeneration. This involves injecting extra fuel into the exhaust stream to increase temperature and incinerate the soot buildup. Active regeneration:

• Typically lasts 20–40 minutes
• May occur every 300–500 miles
• Requires the vehicle to maintain a minimum speed and load

If the drive cycle doesn’t permit these conditions, problems begin to arise.

Forced Regeneration

Forced regeneration is a manually initiated process, typically done via a diagnostic tool at a shop. This is necessary when:

• Active regeneration fails
• DPF pressure differential sensors detect severe blockage
• Warning lights or fault codes appear

It involves elevating the exhaust temperature while the vehicle is stationary. However, repeated reliance on forced regeneration may indicate underlying sensor, injector, or EGR issues.

Recognizing the Warning Signs

A clogged DPF can sideline even the most robust truck. Be alert for the following symptoms:

• Engine derate or reduced power mode
• Excessive fuel consumption
• Illuminated DPF or check engine light
• Exhaust system temperature spikes

Acting swiftly can prevent engine damage and downtime, especially during high-demand operations like hauling in summer or running cross-country routes.

DPF Cleaning vs. Regeneration

It’s critical to distinguish between DPF cleaning and regeneration. While regeneration burns off soot, it doesn’t remove ash—a non-combustible byproduct of engine oil additives. Ash builds up over time and must be physically removed during a cleaning process.

DPF cleaning includes:

• Pneumatic cleaning: Blowing out loose ash with compressed air
• Thermal cleaning: Baking the filter at high temperatures to loosen ash
• Liquid cleaning: Using solvents and rinsing agents to flush internal channels

Most manufacturers recommend cleaning every 100,000 to 150,000 miles, depending on:

• Duty cycle
• Idle time
• Fuel and oil quality

Neglecting this step could result in irreversible filter damage or replacement.

Preventive Maintenance Best Practices

Preventive maintenance helps keep your aftertreatment system running efficiently:

1. Perform regular DPF inspections during scheduled maintenance intervals.
2. Keep an eye on DPF differential pressure readings.
3. Use low-ash, CJ-4 or CK-4 rated engine oils.
4. Address any check engine lights immediately—especially those related to the EGR or turbo system, as they can accelerate DPF loading.
5. Educate drivers to report loss of power, overheating, or regen cycle interruptions.

Technicians should also verify ECM software is current, as outdated calibration can impact regen timing and emissions compliance.

Common Pitfalls to Avoid

• Ignoring repeated active regen cycles—this may indicate deeper issues like a leaking injector or malfunctioning temperature sensor.
• Overlooking DEF quality—poor-quality diesel exhaust fluid in an SCR-equipped system can throw off sensor readings and indirectly affect the DPF.
• Prolonged idling—since exhaust temps never get high enough, idling is a major contributor to premature DPF loading.
• Assuming one-size-fits-all—different engine makes (Cummins, Detroit Diesel, Volvo) have distinct regen and cleaning procedures.

Understanding your fleet’s exact specs can make all the difference.

Keep Your DPF Running Clean

Proper DPF cleaning and regeneration is not optional—it’s a necessity for fleet performance, compliance, and longevity. Whether your operation runs through rural Mississippi or across state lines, proactive maintenance of the DPF system reduces costly repairs, avoids breakdowns, and keeps your trucks on the road where they belong.

At Diesel Solutions in Winona, MS, we emphasize informed maintenance over reactive repairs. Keeping a keen eye on your DPF system ensures cleaner emissions and longer engine life.
